Evolution Aqua Easy Pod Filter, K1 Media & Air Pump
Set includes:
1 x Grey Eazy Pod pond filter
1 x Grey Eazy Pod lid
18 x 1 Litre K1 micro filter media
2 x 1½” Hosetail and o-ring (For inlet and for waste slide valve)
1 x 4" to 3" Eazy connector(For outlet)
1 x Cleaning pipe
1 x EA Air Pump 70
1 x 10m roll of silicone air line
1 x 4 port chrome manifold
2 x Airstones
1 x Rubber Elbow
1 x 2cm silicone tubing
1 x 10cm Airline (12mm)
1 x 12mm Tee
1 x 80cm Airline (12mm)
- Max pond size for Koi: 10000 litres / 2200 Gallons
- Max pond size for ornamental fish: 20,000 Litres / 4400 Gallons
- Maximum pump flow rate: 10,000LPH / 2200 Gallons
- Recommended air flow rate: 70 litres per hour
- Easy Pod dimensions: 71cm length x 58cm width x 65.5cm height

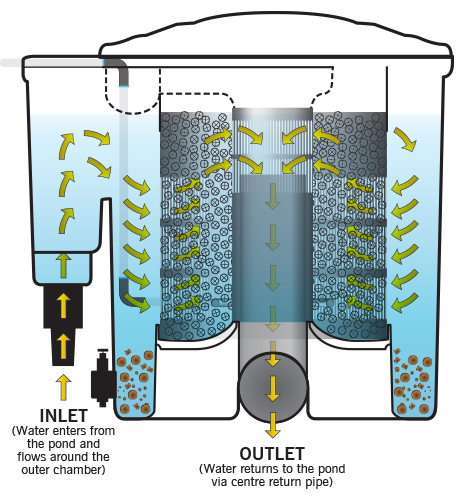

How the EazyPod works
Water from the pond enters the EazyPod via the inlet and then flows around the circumference of the outer chamber of the EazyPod, passing through the stainless steel grill causing many of the larger solids to be filtered out and settle in the base of the outer chamber. This is the first stage of mechanical filtration. As water enters the central chamber, through the stainless steel grill, the fine smaller solids become trapped in the mass of K1 Micro. Bio-films build up on the protected surface area within each piece of media, allowing biological filtration to take place. After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe and flows back to the pond via the outlet. The EazyPod is incredibly simple to clean. The connected air pump is used during the cleaning cycle to agitate the K1 Micro to free up any debris and waste that has built up within the filter. A 70 litre per minute air pump is recommended for use during the cycle cleaning. *Only EazyPodAir and EazyPod Complete models are supplied with a 70 litre per minute air pump and accessory kit.
Installing the EazyPod

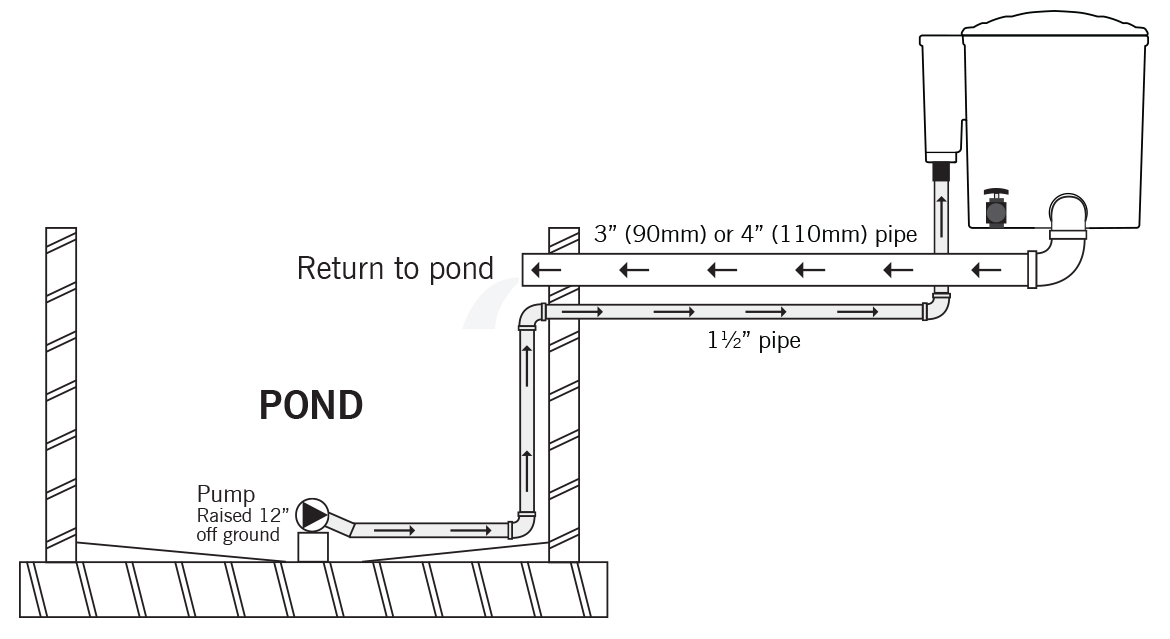

Pump Fed Installation
By this we mean that if your pump is going to be used to supply the water to the filter, and the filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large diameter pipe, this is referred to as PUMP FED (i.e. the water is fed to the filter using a pump)

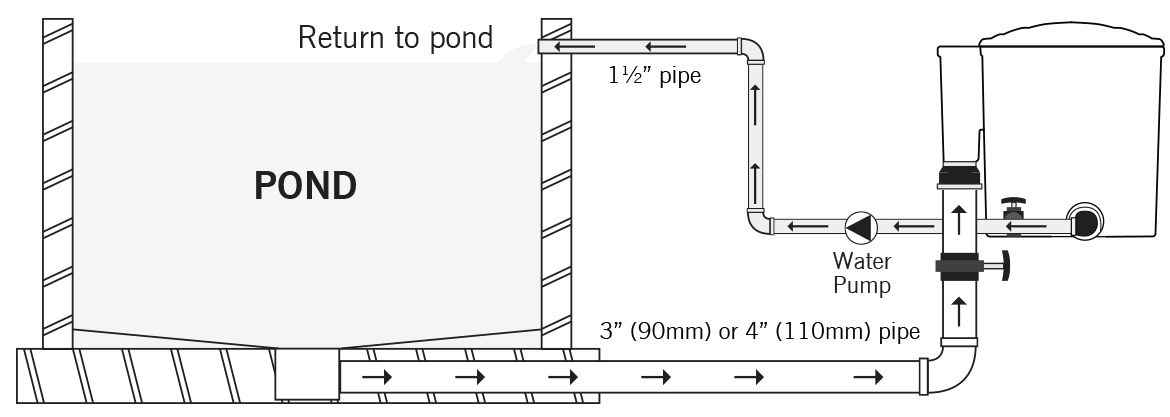

Gravity-Fed Installation
*User modification is required on the EazyPod to enable Gravity Fed installation. By this we mean that your pump is going to be used to return the filtered water to the pond and therefore your filter will be supplied by gravity via a larger diameter pipe. In this situation the water level in the filter will be at the same level as the pond.
